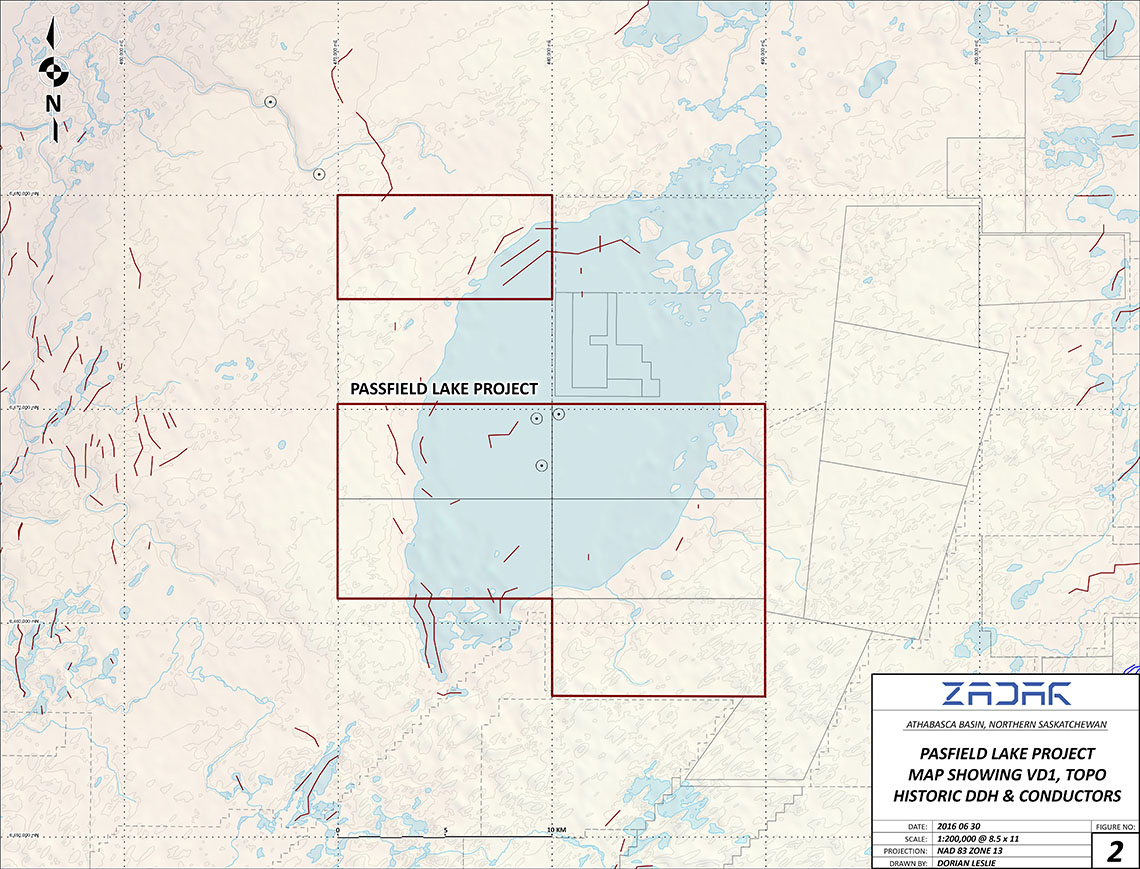

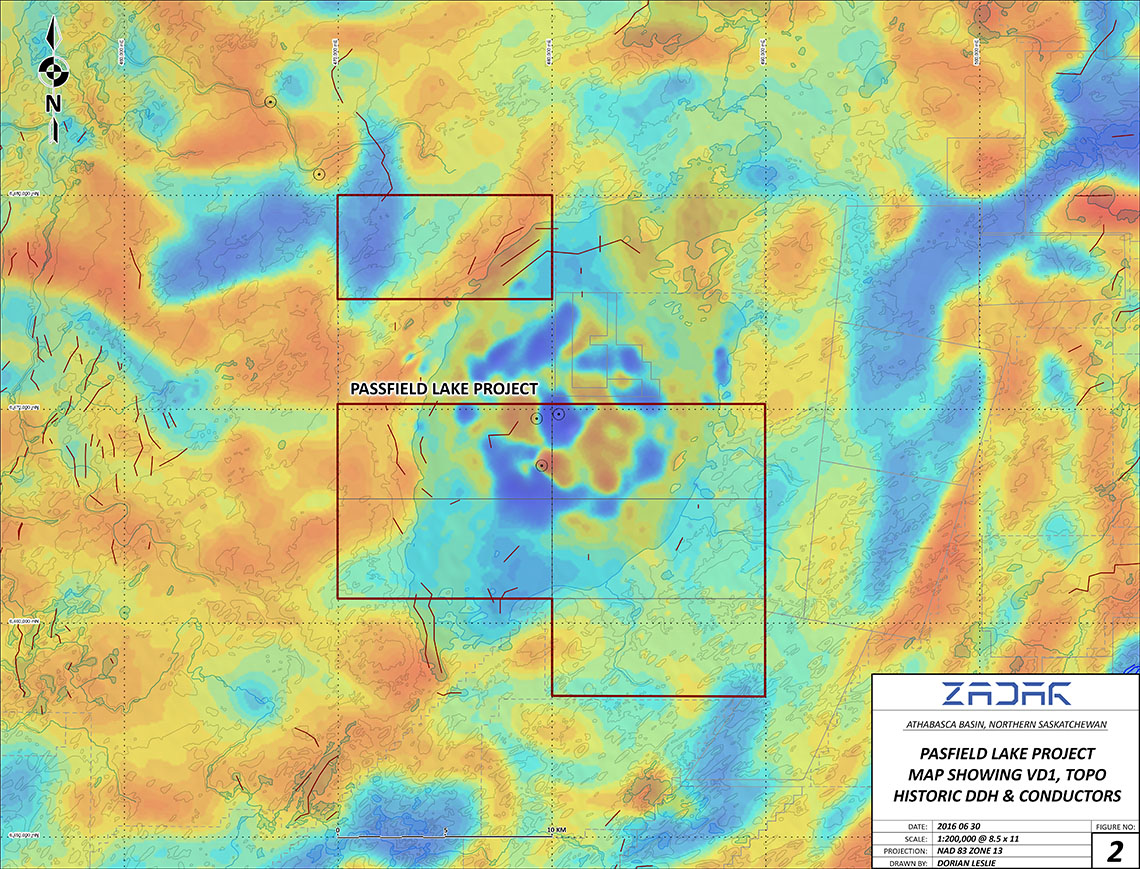

PASSFIELD LAKE PROJECT
Zadar has an option to acquire a 100% interest in the Pasfield Lake Project (37,445 hectares) which is situated on the Pasfield Structure (possibly an astrobleme and similar to the Cluff Lake Structure) and astride the Cable Bay shear zone (“CBSZ”). Exploration has identified important indications of the presence of uranium-bearing hydrothermal fluids along the fault that forms the eastern arm of the CBSZ. Further drilling is required to adequately test for uranium mineralization in this structurally complex area, especially where shallow basement (300-500 metres) is indicated by geophysical surveys. The property is a large and compelling exploration target encompassing a major basement uplift feature, with at least 600 metres of vertical displacement relative to regional basement depths. It is located on a major regional shear zone, with strong surface geochemical anomalies and strongly altered and radioactive rocks discovered in drill core, and coincident with the eastern and western “arms” of the “CBSZ”.
Historic exploration comprised lake sediment sampling, soil and biogeochemical sampling, airborne electromagnetic and gravity surveys, and diamond drilling. Soil and bio-geochemical surveys identified a robust multi-element anomaly with significantly elevated uranium values accompanied by elevated levels of boron, lead, molybdenum, vanadium and arsenic, the five key pathfinder elements associated with alteration halos above unconformity-type uranium deposits in the Athabasca Basin. Reconnaissance drilling identified the presence of significant alteration features indicative of proximity to uranium ore-bodies. Pervasive bleaching was present in basement rocks at the unconformity in all holes. Other features intersected in individual holes included intensely clay-altered granitic gneiss, hematite-filled breccia in basement granite gneiss, + 300 metres of graphitic garnet-mica metapelitic gneiss, strongly graphitic fracture zones, and weak but extensive clay alteration of the sandstone. Two zones with increased radioactivity and elevated uranium, boron and other key pathfinder elements were identified; one at the unconformity and another 800 metres above the unconformity.
The technical information contained within this website has been reviewed and approved by CEO & President Paul D. Gray P.Geo., a qualified person as defined by NI 43-101.
